Ideal Diode Module 40V 60V 80V 100V 150V 200V 280A Solar photovoltaic Base Station Battery Charger Prevent Anti-backflow

نام تجاری:	Enerkey
شماره مدل:	EK-ID40V/60V/80V/100V/150V/200V 280A
مقدار تولیدی:	10 قطعه
قیمت:	$49-$69
جزئیات بسته بندی:	جعبه کاغذ قوی +کف EVA
شرایط پرداخت:	L/C ، D/A ، D/P ، T/T ، Western Union ، MoneyGram

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

شنژن ، چین

گواهی:

ISO9001/CE/ROHS

نام محصول:

ماژول دیود ایده آل 40V/60V/80V/100V/150V/200V 280A

ضخامت مس:

3 اونس

برنامه 1:

ثابت ولتاژ DC-DC

ضخامت تخته:

3.0mm

برنامه 2:

اصلاح خودروی الکتریکی

دامنه ولتاژ عملیاتی مجاز:

9-200 ولت

جریان کار استاتیک:

0.6-1.5mA

جریان مداوم مجاز:

0-280A

ماده پایه:

بستر آلومینیوم

پایان سطحی:

HASL بدون سرب

اندازه محصول:

L113*W60*T28mm

وزن با بسته:

0.55 کیلوگرم

قابلیت ارائه:

10000 قطعه در روز

توضیحات محصول

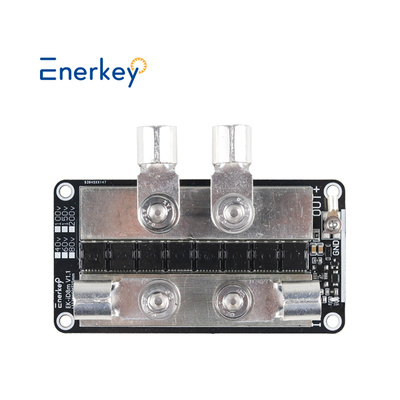

Ideal Diode Module 40V 60V 80V 100V 150V 200V 280A Solar photovoltaic Base Station Battery Charger Prevent Anti-backflow

Product Description

Product Specifications
Operating Voltage Range:
40V/280A Operating Voltage Range: 9V-40V
60V/280A Operating Voltage Range: 9V-60V
80V/280A Operating Voltage Range: 9V-80V
100V/280A Operating Voltage Range: 9V-100V
150V/280A Operating Voltage Range: 9V-150V
200V/280A Operating Voltage Range: 9V-200V
Continuous Operating Current: 280A
Quiescent Operating Current: 0.6-1.5mA
Copper Foil Thickness: 3oz
PCB Material: Aluminum

Special Notes:
1. This is the latest optimized version. Reversing the positive and negative poles will not damage the module, improving installation safety.
2. As the name suggests, an ideal diode has an extremely low internal resistance. While a standard diode has a forward voltage drop of 0.6V or more, an ideal diode has a negligible forward voltage drop.
3. The copper foil and aluminum base layers of the aluminum-based PCB are insulated, with a withstand voltage of 1000V, eliminating the risk of breakdown. Its thermal conductivity is 20 times faster than FR4 fiberglass, allowing it to be directly bonded to large heat sinks.
4. This ideal diode module cannot be used in rectifier circuits.

Ideal Diode Module 40V 60V 80V 100V 150V 200V 280A Solar photovoltaic Base Station Battery Charger Prevent Anti-backflow 0

Ideal Diode Module 40V 60V 80V 100V 150V 200V 280A Solar photovoltaic Base Station Battery Charger Prevent Anti-backflow 1

Ideal Diode Module 40V 60V 80V 100V 150V 200V 280A Solar photovoltaic Base Station Battery Charger Prevent Anti-backflow 2

Ideal Diode Module 40V 60V 80V 100V 150V 200V 280A Solar photovoltaic Base Station Battery Charger Prevent Anti-backflow 3

Ideal Diode Module 40V 60V 80V 100V 150V 200V 280A Solar photovoltaic Base Station Battery Charger Prevent Anti-backflow 4

Ideal Diode Module 40V 60V 80V 100V 150V 200V 280A Solar photovoltaic Base Station Battery Charger Prevent Anti-backflow 5

Technical Parameters

Enerkey Ideal Diode Module 40V 60V 80V 100V 150V 200V 280A Photovoltaic Solar Base Station Industrial Control Electric Car Battery in Parallel For Battery charging anti-backfilling
Product model	EK-iD40V280A EK-iD60V280A	EK-iD80V280A	EK-iD100V280A EK-iD150V280A EK-iD200V280A
Working voltage range	40V280A: 9-40V 60V280A: 9-60V	9-80V	100V280A: 9-100V 150V280A: 9-150V 200V280A: 9-200V
Product Size(mm)	L113W60T28	L113W60T28	L113W60T28
Weight with box	0.5kg	0.51kg	0.55kg
MOS quantity	8	6	10
Battery Type	NCM/LFP/LTO	NCM/LFP/LTO	NCM/LFP/LTO
Continuous current	280A	280A	280A
Peak starting current	280A	280A	280A
Quiescent operating current	0.6-1.5mA
Copper foil thickness	3.0 oz
PCB material	Aluminum plate
On-going internal resistance	NA
Working principle	The input and output are equivalent to diodes. It detects that the output voltage is greater than the input and immediately turns off the output. The detection value is at the millivolt level and the response speed is very fast.
Application	1. Solar panels prevent backflow (anti-backflow); 2. Battery charging prevents backflow (anti-backflow) (anti-backflow); 3. DC-DC constant voltage and constant current module output prevents backflow 4. Other occasions where backflow prevention (anti-backflow) is required
Accessories	Terminal lug*3; IN+/OUT+ terminal lug : OTZ50-8, screw M8 GND terminal lug : OTZ2.5-3, screw M3
Operating Temperature	-40℃ ~ +60℃

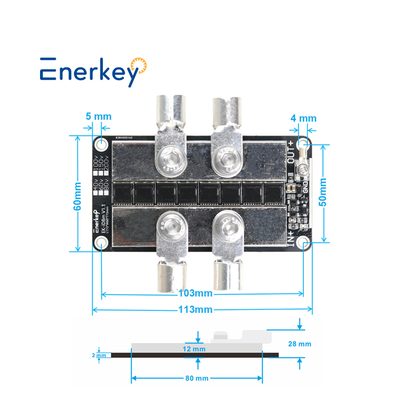

Size $ Packing List

Ideal Diode Module 40V 60V 80V 100V 150V 200V 280A Solar photovoltaic Base Station Battery Charger Prevent Anti-backflow 6

Special Note:
1. This version is the latest optimized version. If the positive and negative poles are connected reversely, the module will not be burned, which improves the safety of installation;
2. An ideal diode is a diode with ultra-low internal resistance as the name implies. The conduction voltage drop of an ordinary diode is more than 0.6V.
The conduction voltage drop of an ideal diode is almost negligible.
3. The copper foil layer and aluminum base layer of the aluminum substrate PCB trace are insulated with a withstand voltage of 1000V, so there is no need to worry about breakdown problems.
Thermal conductivity is 20 times faster than FR4 glass fiber and can be directly attached to large heat sinks.
4. The average overcurrent of a MOS is less than 35A. We use a 300A MOS.
True standard current, allowing long-term load operation
5. This ideal diode module cannot be used in rectifier circuits!

Ideal Diode Module 40V 60V 80V 100V 150V 200V 280A Solar photovoltaic Base Station Battery Charger Prevent Anti-backflow 7

FAQ

Q1. Why did we choose you?

* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.

* Products have passed FCC, CE, ROHS and other international standards certification.

* We can provide you with factory price, Welcome you to visit our factory and production process.

Q2. What is your product range (type)?

*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.

*Mainly used for LFP, Li-ino and LTO batteries.

Q3: How do I know which kind of material & type my battery is ?

*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.

*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.

Q4. Do you have minimum order requirements?

Can it be customized? What is the lead time for samples and batches?

*Our minimum order quantity is 1 piece, ODM customization is available.

* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.

Q5: What if i can't use it?

*Regular products have instructional videos, We can also support online video call guidance from engineers.

Q6. What are your terms of payment?

*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB

Q7. How do you guarantee the quality?

* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.

* Obtained FCC, CE, ROHS and other international standard certification.

* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.

Q8. How to choose a BMS suitable for our battery?

*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.

Q9. How can i contact you?

*We have 7x24 hours online service, Please leave us a message online.

*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.

Noted: We are source manufacturer, We have own brand for "EnerKey",We can customized product as your requirement(Voltage, Wire,Etc) .

We can provide you competitive price in the market if you have bulk order, Please don't hesitate to contact us.

Mobile & WhatsApp & Wechat: +86 15387469240; Email: kiwi@enerkey.cn
