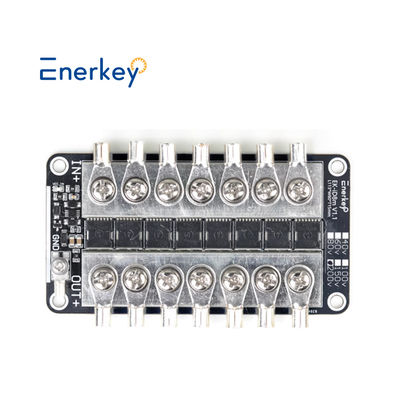

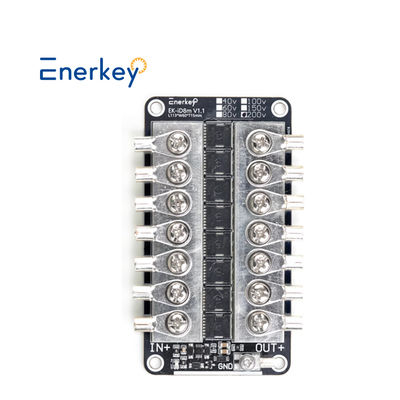

Enerkey Ideal Diode Bridge Controller 100V 150V 200V 260A Solar Energy Anti Reverse Irrigation Battery Charging

نام تجاری:	Enerkey
شماره مدل:	EK-ID100V/150V/200V260A
مقدار تولیدی:	10 قطعه
قیمت:	$36.5-$58.5
جزئیات بسته بندی:	جعبه کاغذ قوی +کف EVA
شرایط پرداخت:	L/C ، D/A ، D/P ، T/T ، Western Union ، MoneyGram

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

شنژن ، چین

گواهی:

ISO9001/CE/ROHS

نام محصول:

ماژول دیود ایده آل 100V/150V/200V 260A

ضخامت مس:

برنامه 1:

ثابت ولتاژ DC-DC

ضخامت تخته:

2.0 میلی متر

برنامه 2:

اصلاح خودروی الکتریکی

دامنه ولتاژ عملیاتی مجاز:

9-200 ولت

نوع باتری:

بسته باتری لیتیوم/Lifepo4/Lto

جریان مداوم مجاز:

0-260a

ماده پایه:

بستر آلومینیوم

پایان سطحی:

HASL بدون سرب

اندازه محصول:

L137*W60*T14.5mm

وزن با بسته:

0.73 کیلوگرم

قابلیت ارائه:

10000 قطعه در روز

توضیحات محصول

Enerkey Ideal Diode Bridge Controller 100V 150V 200V 260A Solar Energy Anti Reverse Irrigation Battery Charging

Product Description

100V/150V/200V 260A Ideal Diode
Robust System Protection (Reverse Polarity Protection)
High Integration (Full Safety features & Fast Protection response)
Leading Power Density (Reduces Space requirements and excellent Thermal Performance)

Enerkey’s automotive ideal diode controllers offer various automotive battery system protection solutions to enable robust protection against reverse polarity and reverse current conditions. These devices provide precise power distribution control throughout the vehicle and replace traditional discrete P-channel MOSFET or Schottky diode solutions while providing additional monitoring, protection, and diagnostics.

Features & Benefits:
1. Integrated 100V MOSFET
2. Optimized Efficiency for Low-Side Rectification
3. Compatible with Energy Star
4. 0.6-1.5mA Quiescent Current
5. Output Range is 0V to 200V

Enerkey Ideal Diode Bridge Controller 100V 150V 200V 260A Solar Energy Anti Reverse Irrigation Battery Charging 0

Enerkey Ideal Diode Bridge Controller 100V 150V 200V 260A Solar Energy Anti Reverse Irrigation Battery Charging 1

Enerkey Ideal Diode Bridge Controller 100V 150V 200V 260A Solar Energy Anti Reverse Irrigation Battery Charging 2

Enerkey Ideal Diode Bridge Controller 100V 150V 200V 260A Solar Energy Anti Reverse Irrigation Battery Charging 3

Enerkey Ideal Diode Bridge Controller 100V 150V 200V 260A Solar Energy Anti Reverse Irrigation Battery Charging 4

Enerkey Ideal Diode Bridge Controller 100V 150V 200V 260A Solar Energy Anti Reverse Irrigation Battery Charging 5

Technical Parameters

Enerkey Ideal Diode Module 100V 150V 200V 260A Photovoltaic Solar Base Station Industrial Control Electric Car Battery in Parallel For Battery charging anti-backfilling
Product model	EK-iD100V260A	EK-iD150V260A	EK-iD200V260A
Working voltage range	9-100V	9-150V	9-200V
Product Size(mm)	L137W60T14.5	L137W60T14.5	L137W60T14.5
Weight with box	0.71kg	0.72kg	0.73kg
MOS quantity	10	10	10
Battery Type	NCM/LFP/LTO	NCM/LFP/LTO	NCM/LFP/LTO
Continuous current	260A
Peak starting current	260A
Quiescent operating current	0.6-1.5mA
Copper foil thickness	2.0 oz
PCB material	Aluminum plate
On-going internal resistance	NA
Working principle	The input and output are equivalent to diodes. It detects that the output voltage is greater than the input and immediately turns off the output. The detection value is at the millivolt level and the response speed is very fast.
Application	1. Solar panels prevent backflow (anti-backflow); 2. Battery charging prevents backflow (anti-backflow) (anti-backflow); 3. DC-DC constant voltage and constant current module output prevents backflow 4. Other occasions where backflow prevention (anti-backflow) is required
Accessories	Terminal lug*9; IN+/OUT+ terminal lug : OTZ6-5, screw M5 GND terminal lug : OTZ2.5-3, screw M3
Operating Temperature	-40℃ ~ +60℃

Size & Packing List & Wire Diagram

Enerkey Ideal Diode Bridge Controller 100V 150V 200V 260A Solar Energy Anti Reverse Irrigation Battery Charging 6

Special Note:
1. This version is the latest optimized version. The module will not be burned if the positive and negative poles are connected reversely, which improves the safety of installation;

2. The ideal diode is a diode with ultra-low internal resistance as the name implies. The conduction voltage drop of ordinary diodes is more than 0.6V. The conduction voltage drop of an ideal diode is almost negligible.
3. The copper foil layer and aluminum base layer of the aluminum substrate PCB traces are insulated with a withstand voltage of 1000V, so there is no need to worry about breakdown problems.

The thermal conductivity is 20 times faster than FR4 glass fiber, and can be directly attached to the large heat sink.

4. This ideal diode module cannot be used in rectifier circuits!

Enerkey Ideal Diode Bridge Controller 100V 150V 200V 260A Solar Energy Anti Reverse Irrigation Battery Charging 7

FAQ

Q1. Why did we choose you?

* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.

* Products have passed FCC, CE, ROHS and other international standards certification.

* We can provide you with factory price, Welcome you to visit our factory and production process.

Q2. What is your product range (type)?

*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.

*Mainly used for LFP, Li-ino and LTO batteries.

Q3: How do I know which kind of material & type my battery is ?

*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.

*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.

Q4. Do you have minimum order requirements?

Can it be customized? What is the lead time for samples and batches?

*Our minimum order quantity is 1 piece, ODM customization is available.

* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.

Q5: What if i can't use it?

*Regular products have instructional videos, We can also support online video call guidance from engineers.

Q6. What are your terms of payment?

*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB

Q7. How do you guarantee the quality?

* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.

* Obtained FCC, CE, ROHS and other international standard certification.

* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.

Q8. How to choose a BMS suitable for our battery?

*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.

Q9. How can i contact you?

*We have 7x24 hours online service, Please leave us a message online.

*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.

Noted: We are source manufacturer, We have own brand for "EnerKey",We can customized product as your requirement(Voltage, Wire,Etc) .

We can provide you competitive price in the market if you have bulk order, Please don't hesitate to contact us.

Mobile & WhatsApp & Wechat: +86 15387469240; Email: kiwi@enerkey.cn
