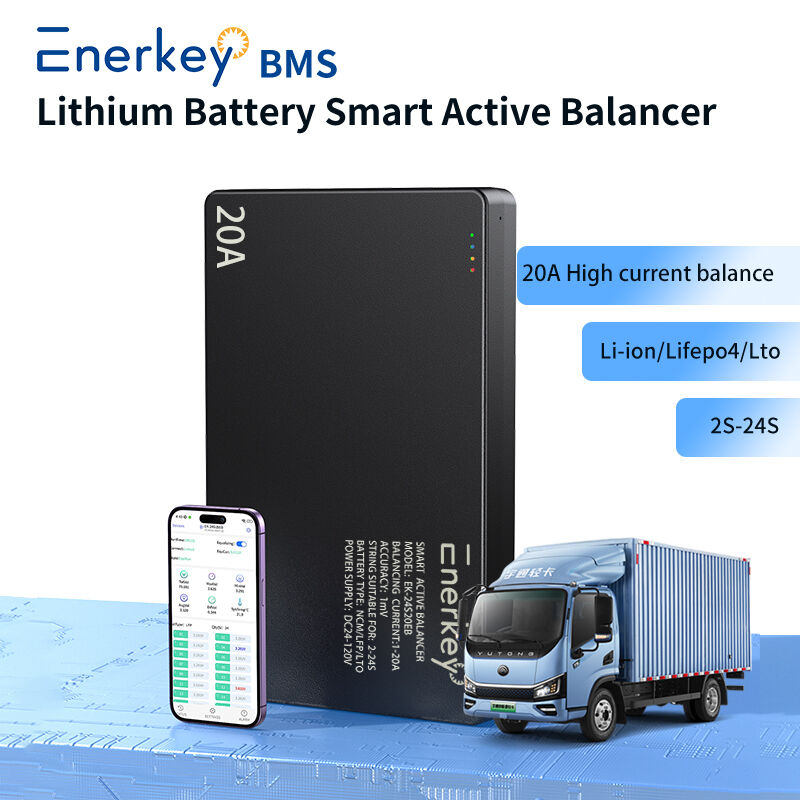

Enerkey 1A-20A Smart Active Balancer for 12V 24V 36V 48V 60V 72V 3S 4S 7S 8S 13S 16S 20S 24S LiFePo4 Li-ion

نام تجاری:	Enerkey
شماره مدل:	EK-24S20EB
مقدار تولیدی:	100 عدد
قیمت:	$208-$258
جزئیات بسته بندی:	جعبه کاغذ قوی +کف EVA
شرایط پرداخت:	L/C، D/A، D/P، T/T، Western Union، MoneyGram

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

شنژن، چین

گواهی:

ISO9001/CE/ROHS

نام محصول:

20A 2s-24s Smart Active Balancer با برنامه

ضخامت مس:

برنامه:

ماشین گشت و گذار کوچک، اسکوتر، ماشین مشترک

ضخامت تخته:

1.6 میلی متر

نوع باتری:

بسته باتری لیتیوم/Lifepo4/Lto

رشته های باتری:

2s-24s

مواد:

FR-4 / HASL

بندر ارتباطی:

بلوتوث و CAN

اندازه محصول:

L313 x W193 x T43mm

وزن با بسته:

2.53 کیلوگرم

قابلیت ارائه:

10000 قطعه در روز

توضیحات محصول

Enerkey 1A-20A Smart Active Balancer for 12V 24V 36V 48V 60V 72V 3S 4S 7S 8S 13S 16S 20S 24S LiFePo4 Li-ion

Product Description

Smart Active Balancer Equalizer 24s 12-72volt 20A max - NMC/ LFP - For Lithium Battery Packs

1. This is Lithium Battery Active balancer Equilizer. This balancer unit works on Lithium ion and lithium Phosphet both battery even with prismatic cells also. This balancer can work from 12 volt to 96 volt all range. For lithium ion its 2s to 24s and for lithium Phosphet it will be 4s to 24s Maximum.
2. balancing current is 20amps. Means if you battery is 20AH then it need max 2 hours to full balnace your battery. If its 40ah then max 4 hours. we also provide the connector set so that you can connect the bms wire directly to the BMS Module. We provide APP download file for this balancer and full tutorial of how to use this balancer. This balancer can also detect the error or problem in your battery and inform you through app.

Safety Precautions
Please have the product installed and maintained by professional technicians.
Do not use in flammable or explosive environments.
If any abnormality is detected, please stop using the product immediately and contact the manufacturer.
The product requires regular safety inspections and functional testing.

Package Contents
24S 20A Smart Active Balancer Host ×1
Communication Cable ×1
User Manual ×1
Certificate of Conformity/Warranty Card ×1

Certification Information
CE Certified
RoHS Compliant
Complies with T/CPPC XXXX-2023 Electric Bicycle Battery Balancer Standard

After-Sales Service
1-year warranty
Lifetime technical support

Enerkey 1A-20A Smart Active Balancer for 12V 24V 36V 48V 60V 72V 3S 4S 7S 8S 13S 16S 20S 24S LiFePo4 Li-ion 0

Enerkey 1A-20A Smart Active Balancer for 12V 24V 36V 48V 60V 72V 3S 4S 7S 8S 13S 16S 20S 24S LiFePo4 Li-ion 1

Enerkey 1A-20A Smart Active Balancer for 12V 24V 36V 48V 60V 72V 3S 4S 7S 8S 13S 16S 20S 24S LiFePo4 Li-ion 2

Enerkey 1A-20A Smart Active Balancer for 12V 24V 36V 48V 60V 72V 3S 4S 7S 8S 13S 16S 20S 24S LiFePo4 Li-ion 3

Enerkey 1A-20A Smart Active Balancer for 12V 24V 36V 48V 60V 72V 3S 4S 7S 8S 13S 16S 20S 24S LiFePo4 Li-ion 4

Enerkey 1A-20A Smart Active Balancer for 12V 24V 36V 48V 60V 72V 3S 4S 7S 8S 13S 16S 20S 24S LiFePo4 Li-ion 5

Enerkey 1A-20A Smart Active Balancer for 12V 24V 36V 48V 60V 72V 3S 4S 7S 8S 13S 16S 20S 24S LiFePo4 Li-ion 6

Enerkey 1A-20A Smart Active Balancer for 12V 24V 36V 48V 60V 72V 3S 4S 7S 8S 13S 16S 20S 24S LiFePo4 Li-ion 7

Enerkey 1A-20A Smart Active Balancer for 12V 24V 36V 48V 60V 72V 3S 4S 7S 8S 13S 16S 20S 24S LiFePo4 Li-ion 8

Enerkey 1A-20A Smart Active Balancer for 12V 24V 36V 48V 60V 72V 3S 4S 7S 8S 13S 16S 20S 24S LiFePo4 Li-ion 9

Technical Parameters

Product model	20A Smart Active Balancer for 2-24s (EK-24S20EB)
Supported battery type	NCM / LFP/ LTO(Li-ion/Lifepo4/Lto)
Single cell voltage collection range	1.5V~4.5V
Undervoltage protects sleep voltage	APP can be customized Settings :1.5-4.2V
Equilibrium method	Time-sharing single channel transfer, point-to-point energy transfer
Reverse protection	Support disorderly power on detection/protection
Equilibrium current	APP can be customized Settings: 1A~20A
Whether an external power supply is required	Battery-operated(Accuracy:3mV) DC power supply(Accuracy:1mV)
External power supply	DC 24-120V
Voltage equalization accuracy	APP can be customized Settings :1mV(TYP)
Power failure detection function	Support
Wrong wire protection function	Support
Fault alarm function	Support
Buzzer	APP can be customized Settings
Power dissipation	At equilibrium≈1W,Stop equilibrium≈0.5W
Operating temperature	-20℃ ~ +55℃
Application	High-power energy storage, base station backup power supply,Solar power station

Packing List

Enerkey 1A-20A Smart Active Balancer for 12V 24V 36V 48V 60V 72V 3S 4S 7S 8S 13S 16S 20S 24S LiFePo4 Li-ion 10

Part Name	Q'ty
20A Smart Active Balancer	1pcs
1m 16AWG Clip Wire	25pcs
3pin 7.62Pitch Thermial	1pcs
7pin 7.62Pitch Thermial	1pcs
9pin 7.62Pitch Thermial	1pcs
DC Adapter	1pcs

Wire Diagram

24S Wiring Diagram

EK-24S20EB supports 2S-24S. The following figure shows how to install and connect cables to the 24S battery string:

Enerkey 1A-20A Smart Active Balancer for 12V 24V 36V 48V 60V 72V 3S 4S 7S 8S 13S 16S 20S 24S LiFePo4 Li-ion 11

17S Wiring Diagram

When less than 24 battery strings are connected in series, empty pins are suspended. The following uses 17S as an example.

Enerkey 1A-20A Smart Active Balancer for 12V 24V 36V 48V 60V 72V 3S 4S 7S 8S 13S 16S 20S 24S LiFePo4 Li-ion 12

3S Wiring Diagram

If the battery string has a total voltage lower than 24V, you need to connect 24V to 120V DC power supplies.

The following uses 3S as an example:

Enerkey 1A-20A Smart Active Balancer for 12V 24V 36V 48V 60V 72V 3S 4S 7S 8S 13S 16S 20S 24S LiFePo4 Li-ion 13

40S Cascade Wiring Diagram

EK-24S20EB supports cascading use, and at least one battery between every two equalizers is the "common end of energy exchange".

The following uses the 40S as an example to describe how to install and connect cables:

Enerkey 1A-20A Smart Active Balancer for 12V 24V 36V 48V 60V 72V 3S 4S 7S 8S 13S 16S 20S 24S LiFePo4 Li-ion 14

FAQ

Q1. Why did we choose you?

* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.

* Products have passed FCC, CE, ROHS and other international standards certification.

* We can provide you with factory price, Welcome you to visit our factory and production process.

Q2. What is your product range (type)?

*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.

*Mainly used for LFP, Li-ino and LTO batteries.

Q3: How do I know which kind of material & type my battery is ?

*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.

*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.

Q4. Do you have minimum order requirements?

Can it be customized? What is the lead time for samples and batches?

*Our minimum order quantity is 1 piece, ODM customization is available.

* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.

Q5: What if i can't use it?

*Regular products have instructional videos, We can also support online video call guidance from engineers.

Q6. What are your terms of payment?

*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB

Q7. How do you guarantee the quality?

* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.

* Obtained FCC, CE, ROHS and other international standard certification.

* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.

Q8. How to choose a BMS suitable for our battery?

*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.

Q9. How can i contact you?

*We have 7x24 hours online service, Please leave us a message online.

*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.

If you have any advices or requests, Warmly welcome your consulting.

Mobile & WhatsApp & Wechat: +86 15387469240; Email: kiwi@enerkey.cn
